Historic Cement Tile Reproductions

Reproducing Historic Cement Tile for Los Angeles Unified School District

Villa Lagoon Tile is very proud to have been chosen to reproduce a cement tile for an important California landmark. This is a complex that has been locked in controversy for 20 years and the City of Los Angeles is now moving forward to complete a municipal educational facility, The Central Learning Center, on this prominent city property. So much had gone into the final decisions on what to do with this property and so many people were involved, it was very important to get approvals all along the way and to be sure the original tiles were reproduced as accurately as possible. See the video of how they are made below.

Spring 2010 Installation Photos:

Antique Cuban tile reproduction Historic tile reproductions

Copy old tile from Cuba fro Los Angeles Calif

The Original Cuban Tile:

Ambassador Hotel in LA tile floor photo

The first step is to identify the best color choices for the new tile to be made as close as possible to the 80 year old originals.
Original historic  tile to be reproduced The samples of the original 8 inch by 8 inch tile that we received had been made by two different companies. The goal was to pull some color from one version of the tile and other colors from the second tile. Both tiles showed significant wear and deterioration from neglect.
Color matching antique tile Historic antique cement tile

making reproductions of antique tile.
We aligned our current color chips with the portions of the tile that had the desirable colors. Several people were involved in the color matching decisions.Matching colors in tile reproductions
We could see that the green used in the solid relief tile was slightly different from the green in the mosaic patterned tile. A decision had to be made about which green to match.
Old tile to be reproduced
Line drawings of the original patterns are then given to the mold maker to reproduce cement tile mold inserts for each component of the field tiles and border tiles.
LA Learning Center Floral Field Tile

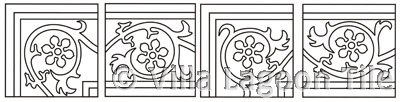

LA Learning Center Border Tile Line Drawings
LA Learning Center Relief Paver Tile
We were considering the possibility of making several molds since this tile installation originally utilized two different border tile and two different corner tile patterns in addition to the central motif. There is also a relief paver tile. It will be up to the architects and historical committee representatives to decide if both versions of the border and corners need to be reproduced.
Historic tile reproductions for Los Angeles California Historic tile reproduction

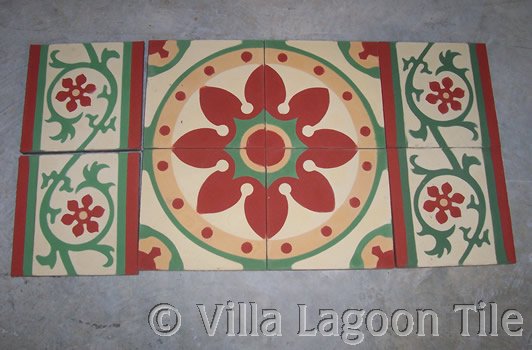

These are our finished reproductions of the original Cuban tiles. Our cleints said they looked too new. We told them that the originals had 80 years of weather, wear and tear. We could try to help them do a fauz ageing treatment but it is very likely that this is what their tiles originally looked like.

See how this antique reproduction tile is made:

Photos of the original tile at the famous Ambassador Hotel in Los Angeles. Ambassador Hotel Tile Walkways
Los Angeles Ambassador Hotel Pool
The pool was surrounded by matching solid color cement tile.

The Central Learning Center campus will also feature a new public park along Wilshire Boulevard honoring Robert F. Kennedy who was shot and killed at the Ambassador Hotel originally on this site.

See the new installation of our tile at the Los Angeles Central Learning Center

Story about the planning of this monumental project...

The History of the Ambassador Hotel
